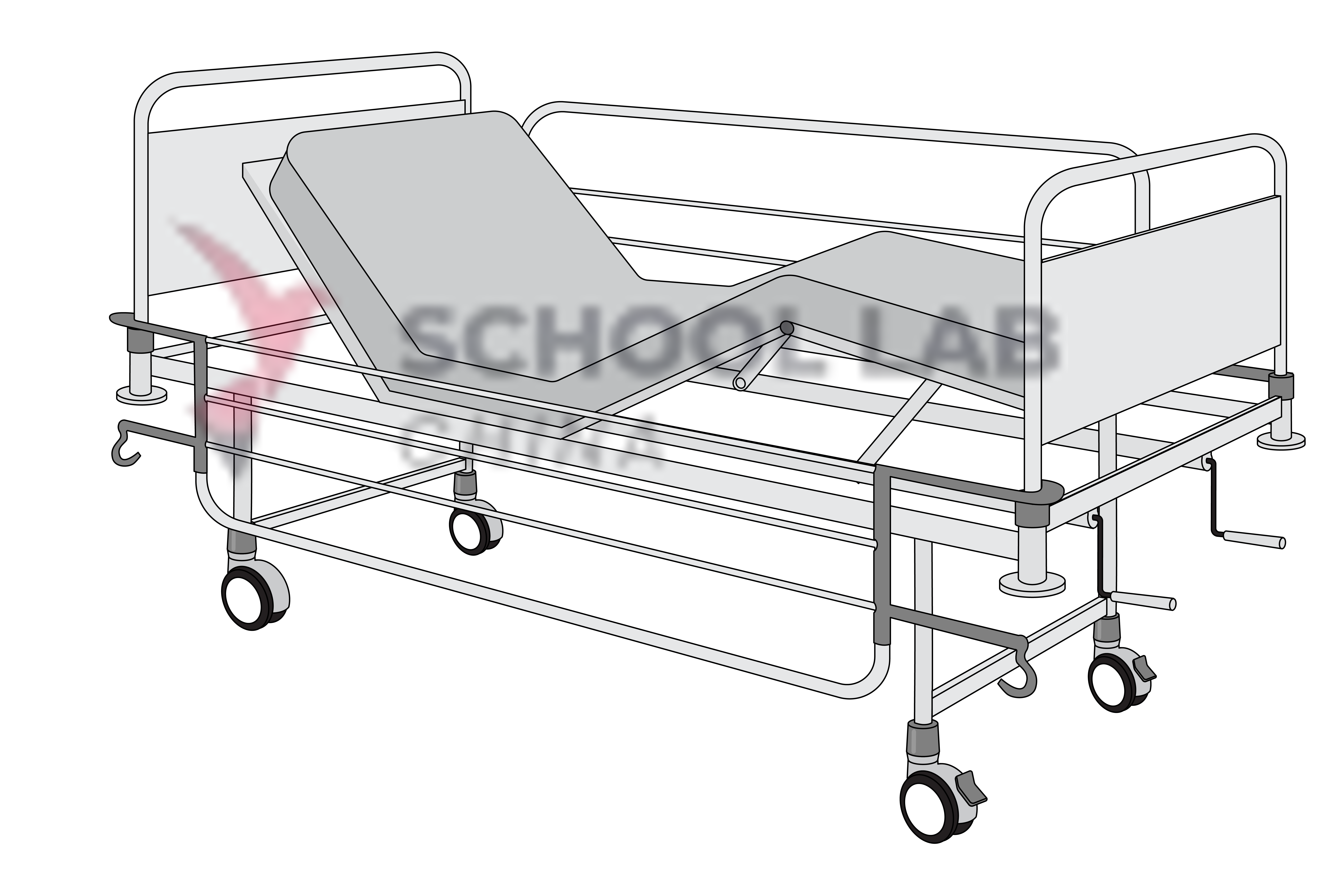

Bed,hospital,ICU,w/mattress
.png)
Product Code : SCL-HF-12240
General Description:
Bed, hospital, Intensive Care Unit, with mattress.
Intended use:
A bed for rest/sleep/treatment for patients with critical illness or injuries. Manually-operated.
Technical Specifications:
Hospital bed, intensive care, 4 sections.
Four section platform, epoxy-painted steel mesh with side supports to immobilize mattress.
Mounted on 4 swivel castors, heavy duty, 2 with brake.
Transfer bars connect lower distal portions of the 2 foot-end and the 2 head-end legs, providing maximal structural strength.
Protective bumpers at all four corners.
Bed-ends, finished with panels.
Manually operated crank allows adjusting backrest (to 80 degrees), leg section and foot section (to 30-40 degrees).
Crank-handle folds away underneath the bed.
With adjustable and removable folding side rails.
Mattress cover removable via side zipper.
Materials:
High resistance to corrosion (tropical environment)
Frame: epoxy coated tubular steel.
Mattress: high-density polyurethane foam, density 28-30 kg/m3
Cover: plastic, flexible, highly tear resistant, anti-static, flame-retardant, non-absorbing, waterproof and cleanable with hospital-grade disinfection products.
Caster frame/bracket: steel or nylon
Caster wheel: single wheel, mold-on type, non-hooded (for easy maintenance)
Wheel bearing: sealed bearing in the swivel and the wheel
Swivel is ball-bearing
Dimensions:
Sleeping surface: 200 x (84-90) cm (l*w).
Height of surface, without mattress, fixed: 50 cm.
Mattress: 12 cm (h).
Bed frame: (5-7) x 3 cm (h x w), (1.7-2) mm (thickness).
Leg frame 3 cm x (1.7-2) mm (thickness).
Swivel castor wheels: (2.5-3) x 12.5 cm (w*diameter).
2 castors with brakes.
Carrying capacity: min. 150 kg.
Knockdown construction: yes
Items supplied with:
1 x complete set of tools required for assembly
1 x fitting mattress with cover
2 x removable folding side rails
List of accessories and parts
Detailed step-by-step instructions for assembly and safe use, text-freepictorial based (i.e. line-drawings only)
Instructions for use including cleaning and disinfection instructions in English, French and Spanish.
Warranty of minimum 2 years.
