Intended use: Surgical instrument to separate fatty tissue, muscles or viscera after the abdominal incision to expose the operative field for examination or intervention.

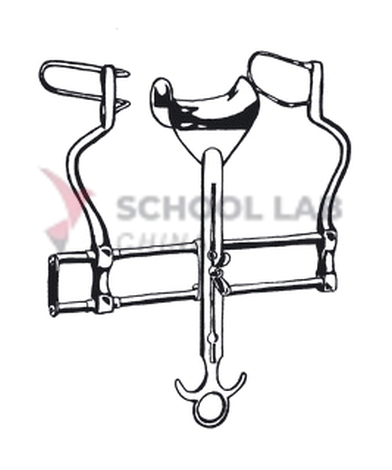

Technical Specifications: Static function instrument: abdominal self-retaining retractor. See Martin Catalogue no. 24 Ref: 15 852 00. Locking mechanism and compass (self-holding). The compass (frame) is a support with hinged arms. 2 fenestrated end blades: approx. 35 x 70 mm. 1 center blade, adjustable in height: approx. 45 x 80 mm. Maximum wound opening: approx. 180 mm. Material: Martensitic steel (quenched, magnetic steel). Martensitic steel composition: 0.15-0.50% carbon, 12-15% chromium, 0.45-0.90% molybdenum. Reusable.
Environmental conditions: Storage and transport conditions: 5°C to 40°C. Humidity: 40% RH to 70% RH.
Safety process: This item must be cleaned, disinfected after each use, and sterilised in a steam steriliser.
Packaging and labelling: Primary packaging: Unit of use One (1) retractor in a plastic bag.
