Scale,beam type,child/adult,220kgx50g
.png)
Product Code : SCL-MAI-12536
General description

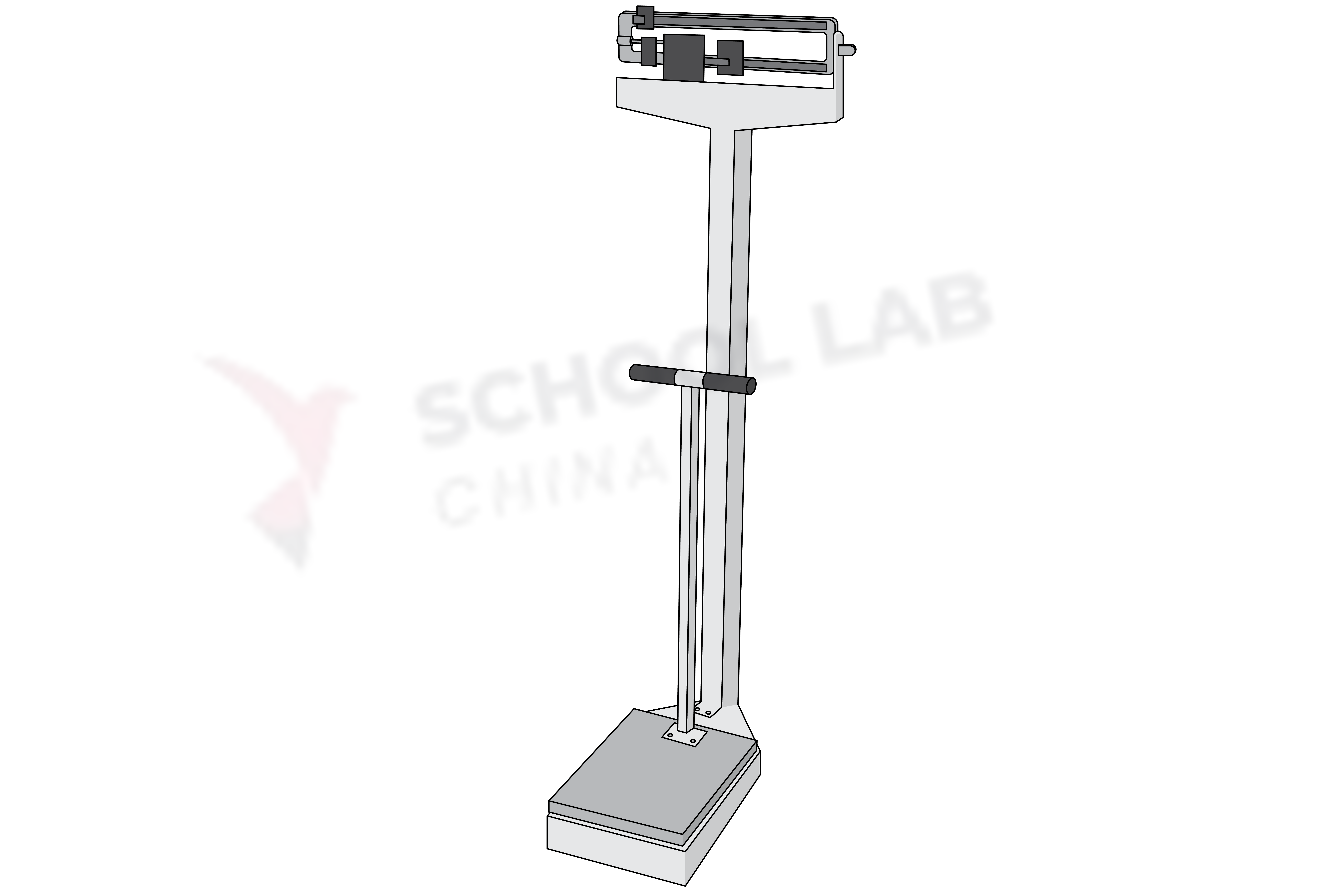

Mechanical adult scale, beam type, for use up to 220 kg with 50 g precision
Intended use:
Mechanical measuring device for weighing children and adults in an upright position in health facilities or hospitals. Manually operated. For stationed use.
Technical specifications:
Beam balance scale.
Graduation: 50 g across the entire measuring range.
Capacity: max. 220 kg.
With two sliding weights: one for gram setting (top side), one for kg setting (bottom side).
Display: easy readable in low light working situations, black colored numbers on silver surface. Can be read from both front and back side.
With reset-to-zero function.
With stabilizing mechanism for faster reading of results.
Adjustable feet to ensure stable position.
With supporting hand pole.
Without height measuring rod.
Material:
All vital moving parts are made of rust proof materials.
Base and column: powder-coated steal for corrosion protection and UV resistance
Calibration screw: stainless, galvanized steel.
Body and mechanics must be splash proof and shock resistant.
Designed for heavy duty use in demanding circumstances.
Smooth surface/finishing allows for easy cleaning/disinfection.
Dimensions:
Overall dimensions (incl. Stand): 520 x 1.556 x 520 mm (WxHxD).
Dimensions of the platform: 335 x 80 x 345 mm (WxHxD).
Dimension of the display (WxHxD): 495 x 92 x 3 mm.
Knockdown construction: yes.
Environmental conditions:
Operating temperature: 0 to 45 degrees C.
Storage/transport temperature: -20 to 65 degrees C.
Humidity: 30% to 80% RH with no condensation.
Supplied with:
Instructions for assembly, use, and cleaning in pictograms, additionally supported by English, Spanish and French.
1 x complete set of tools for assembly.
Contact details for repair service and contact details for recalibration services.
Warranty and service:
Warranty: 4 years.
Product lifespan: 12 years.
After sales service available for recalibration and repair in different parts of the world.
Optional accessory at extra cost:
Height measuring rod made of non corrosive materials.
Primary packaging:
One (1) unit per box
Weight 19.8 kg, volume 114 dm3
