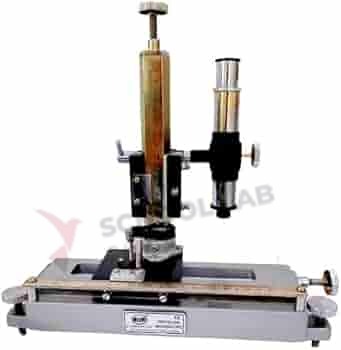

Travelling Microscope (or vernier microscope) consists of horizontal and
vertical scales of brass steel. It is used for measuring small lengths. The
cast iron base is fitted with levelling screws with the top duly machined over
which slides a metal carriage.
The microscope slide can be clamped at any position by the means of a
clamping screw. A vertical slide operating in a similar way is fitted on the
horizontal carriage. The microscope with rack and pinion is fitted on this
vertical carriage and can be clamped in a vertical or horizontal position.
The stage for placing objects for measurement is fitted with a Perspex
plate. Achromatic lenses have been used. Slides travel 210mm horizontally and
160mm vertically. Full operating instructions / experiment guide are included.
Eyepiece:
FL10X/50mm
Vernier
reading: 0.02 or 0.01mm
Supplied
in wooden polished case
Learning Outcomes
General
microscopy skills.
Using
a vernier scale.
Determining
the surface tension of a liquid.
Measuring
the diameter of Newton's ring.
Top Tips
Full
annual servicing, as well as regular cleaning, will ensure the longevity
of your microscope.
Microscope
eyepieces should be wiped with Alcohol-free antiseptic wipes in between
use to ensure cleanliness.
