3cm Microwave System
Product Code : EL-PLE-11884
Quick Answer: The 3cm Microwave System is a self-contained set of transmitter, receiver and probe detector units for investigating the wave properties of 10GHz (3cm) microwaves. No external apparatus is needed for setting up.
Last updated: October 2026
Key Features

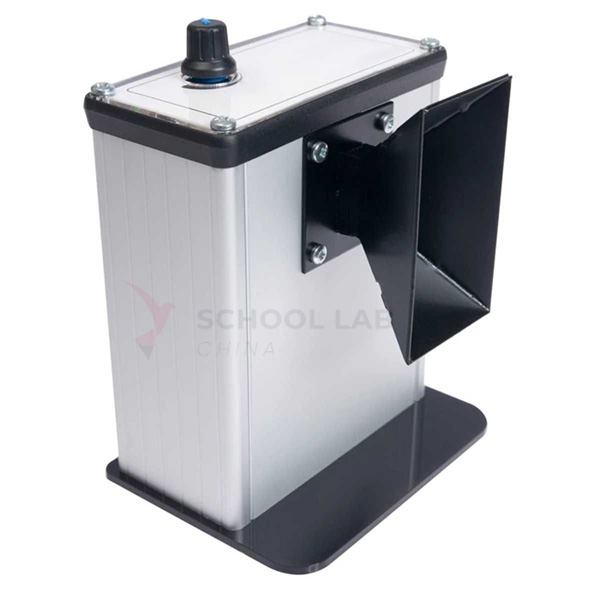

- Transmitter with a Schottky diode oscillator module feeding a tuned waveguide and horn for a directional beam
- Variable-frequency audio modulation adjusted from a control on the top panel
- Plate-antenna receiver with internal amplifier, loudspeaker and sensitivity control
- Probe detector with separate sensitivity and volume controls for locating areas of peak and low amplitude
- 4mm sockets on the probe detector for monitoring output on a CRO
- Accessories: 2 metal reflection/diffraction plates with base, an acrylic reflection/transmission plate with base and 1 narrow metal plate for Young's slits
Technical Specifications
| Specification | Value |
|---|---|
| Microwave frequency | 10GHz (3cm) |
| Transmitter size | 110 x 110 x 150 mm high |
| Receiver size | 60 x 110 x 150 mm high |
| Probe detector size | 130 x 80 x 130 mm high |
| Power | Mains plug-top units (supplied) |
| Probe detector output | 4mm sockets for CRO connection |
About This Product
With the transmitter and the wide-angle receiver, students can carry out qualitative demonstrations of microwave communications and wave effects such as reflection, absorption, refraction, standing waves and interference. The probe receiver gives more precise results over a shorter range for quantitative work, and using all three units covers all aspects of the topic.
Frequently Asked Questions
Which units are needed for a working system?
The transmitter and the wide-angle receiver are enough for qualitative demonstrations of microwave communications and wave effects. For quantitative measurements the probe receiver is added, and using all three units covers all aspects of the topic.
How are the units powered?
The transmitter and receiver run from mains plug-top units, which are supplied. The probe detector uses the same type of plug-top supply as the receiver, and an additional power supply unit can be supplied if requested.
What accessories come with the system?
The accessory set comprises 2 metal reflection/diffraction plates with base, an acrylic reflection/transmission plate with base and 1 narrow metal plate to provide Young's slits.
Related: Physics Lab Equipment, Microwave Radiation Monitor, Oscilloscope.
For a quotation on the 3cm Microwave System, contact School Lab China.
