Oscilloscope
Product Code : EL-PLE-11885

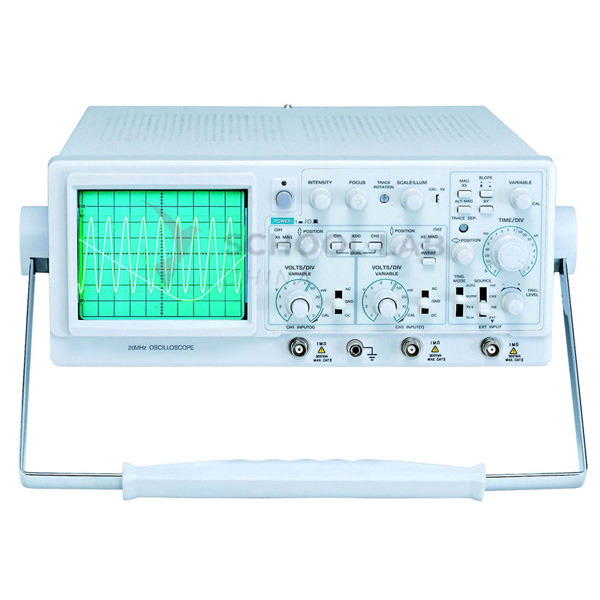

Quick Answer: The Oscilloscope is a 20MHz, 2 channel 4 trace instrument with a 6" CRT display, X5 magnifier and X-Y operation. It works on AC 100V/120V/220V/230V power.
Last updated: October 2026
Key Features
- 2 channel, 4 trace display
- 20MHz bandwidth
- X5 magnifier
- X-Y operation with a DC-500KHz bandwidth
- Operating modes CH A, CH B, DUAL and ADD
- Probes x1 and x10
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 channel, 4 trace |
| Operating mode | CH A, CH B, DUAL, ADD |
| Sensitivity | 5mV-5V/div; 1mV-1V/div (X5 MAG) |
| Bandwidth | DC: DC-20MHz; AC: 10Hz-20MHz |
| Input impedance | 1MΩ ±2%, 25pF ±3pF |
| Rise time | 17.5ns |
| Chop frequency | 250KHz |
| Max. input voltage | 400V (DC + AC peak) |
| Sweep mode | A, XY, ALT, MAG, X5 MAG |
| Sweep time | 0.1us-0.2s/div |
| Trigger source | INT, CHB, LINE, EXT |
| Trigger coupling | AC, TV-V, TV-H |
| X-Y bandwidth | DC-500KHz |
| CRT | 6" (8 x 10 div), 1.9KV |
| Power requirement | AC 100V/120V/220V/230V ±10% |
| Dimensions | 335 (W) x 140 (H) x 375 (D) mm |
| Weight | Approx. 7.3Kg |
| Probe | x1, x10 |
About This Product
An oscilloscope displays electrical signals as traces on a screen so that their shape, amplitude and timing can be studied. This unit shows two input channels on a 6" CRT, with the X5 magnifier for closer viewing of a trace and X-Y operation for plotting one signal against another.
Frequently Asked Questions
What is the bandwidth of the Oscilloscope?
The bandwidth is DC-20MHz on DC coupling and 10Hz-20MHz on AC coupling. In X-Y operation the frequency bandwidth is DC-500KHz.
What power supply does it need?
It needs AC 100V, 120V, 220V or 230V, within ±10%.
How large and heavy is it?
It measures 335 (W) x 140 (H) x 375 (D) mm and weighs approximately 7.3Kg.
Related: Physics Lab Equipment, Digital Stroboscope, Electromagnetic Field Tester.
For a quotation on the Oscilloscope, contact School Lab China.
