Digital Stroboscope Manufacturer,Supplier and Exporter in China
Product Code : EL-PLE-11891
Description:

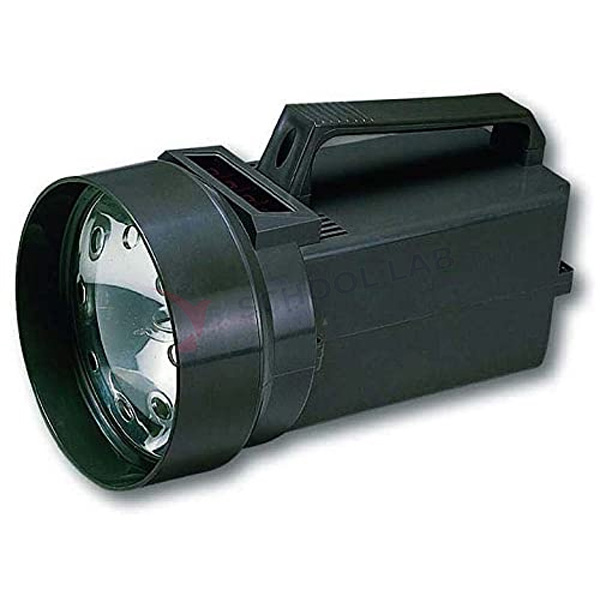

This is a microprocessor circuit design, high accuracy, digital readout, light duty Stroboscope/ Tachometer that is ideal for inspecting and measuring the speed of moving gears, fans, centrifuges, pumps, motors and other equipment used in general industrial maintenance production, quality control, laboratories and as well as for schools and colleges for demonstrating strobe action.
Technical Specification:
• Display: 0.3” LED, 4 digits
• Stroboscopic Flash Rate: 100 to 10,000 flashes per minute (FPM)
• Accuracy:
• 100 to 5,000 FPM/RPM - ± 1digit
• Over 5000 FPM/RPM - ± 0.05%
• Resolution:
• Less than 10,000 FPM/RPM - 1FPM/RPM
• Over 10,000 FPM/RPM - 10FPM/RPM
• Sampling Time: 1 second
• Range Select: Automation
• Circuit: This stroboscope/ tachometer employs an custom one-chip of microcomputer LSI circuit & crystal control time base which results in extraordinary accuracy over a wide, dynamic range.
• Power Supply: 220 Vac 10%, 50/60 Hz
• Power Consumption: Less than 30 Watt
• Operating Temp.: 0 to 50ºC (32 to122ºF)
• Operating Humidity: Less than 80% R.H.
• Dimension: HWD - 21x12x12cm (8.3x4.8x4.8inch )
• Weight: 1kg / 2.2lb
• Housing: Compact and impact plastic injection case with plastic mirror type reflector
• Calibration: Crystal time base and microprocessor circuit, not necessary to take any external calibration process
