Electromagnetic Field Tester

Product Code : EL-PLE-11883

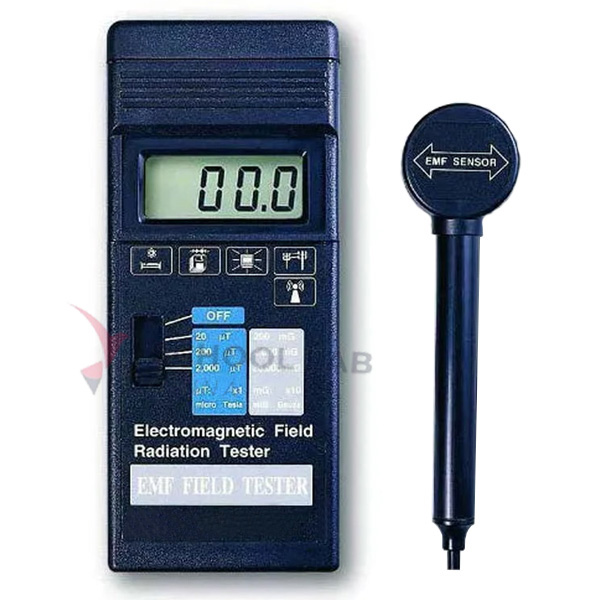

Quick Answer: The Electromagnetic Field Tester is a hand-held instrument with a separate probe for measuring electromagnetic field radiation levels around power lines, home appliances and industrial devices. It reads in both micro Tesla and milli Gauss.

Last updated: October 2026

Key Features

Separate probe with handle for easy operation and remote measurement
Ranges of 20/200/2,000 micro Tesla and 200/2,000/20,000 milli Gauss
13 mm (0.5") LCD with 3 1/2 digits and a maximum indication of 199.9
Bandwidth of 30 Hz to 300 Hz with a single-axis probe
Runs on a DC 9V battery (006P, MN1604, PP3)

Technical Specifications

Specification	Value
Range (Tesla)	20 / 200 / 2,000 micro Tesla
Range (Gauss)	200 / 2,000 / 20,000 milli Gauss
Conversion	1 micro Tesla = 10 milli Gauss
Display	13 mm (0.5") LCD, 3 1/2 digits, max. indication 199.9
Bandwidth	30 Hz to 300 Hz
Probe	Separate probe with handle, single axis
Accuracy, 20 micro Tesla / 200 milli Gauss range	± (4 % + 3 d)
Accuracy, 200 micro Tesla / 2,000 milli Gauss range	± (5 % + 3 d)
Accuracy, 2,000 micro Tesla / 20,000 milli Gauss range	± (10 % + 5 d)
Sampling time	0.4 second
Battery	DC 9V, 006P / MN1604 (PP3)
Power current	Approx. DC 2 mA
Operating temperature	0ºC to 50ºC (32ºF to 122ºF)
Operating humidity	80% RH
Weight	215 g including battery
Main instrument size	163 x 68 x 24 mm
Probe size	175 x 45 x 22 mm

About This Product

The tester is used to find the magnitude of electromagnetic field radiation produced by power lines, computer monitors, TV sets, video machinery and similar devices. Measurements are taken through the separate probe, so the reading can be made away from the main instrument, and the accuracy figures were tested under 50 Hz or 60 Hz. The Electromagnetic Field Tester can be exported to customers in Mali, Benin, Nicaragua, Guyana and Uruguay.

Frequently Asked Questions

What units does the Electromagnetic Field Tester read in?

It reads in micro Tesla, with ranges of 20, 200 and 2,000 micro Tesla, and in milli Gauss, with ranges of 200, 2,000 and 20,000 milli Gauss. 1 micro Tesla equals 10 milli Gauss.
