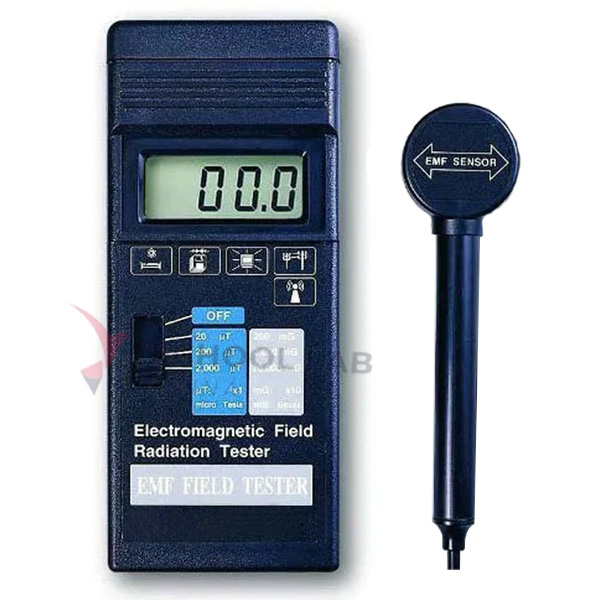

Electromagnetic Field Tester
Product Code : EL-PLE-11883
Features:
• The EMF tester is designed to provide user a quick, reliable and easy way to measure electromagnetic field radiation levels around power lines, home appliances and industrial devices
• Separate probe, easy operation & remote measurement.
• Wide measuring ranges, 20/200/2,000 micro Tesla, 200/2,000/20,000 milli Gauss.
• The EMF tester is a cost effective, hand-held instrument designed and calibrated to measure electromagnetic field radiation at different bandwidths down to 50 Hz/60 Hz
Applications: This EMF tester is specifically designed to determine the magnitude of electromagnetic field radiation generated by power lines, computer's monitor, TV sets, video machinery and many other similar devices
Display: 13 mm (0.5") LCD, 3 1/2 digits. Max. indication 199.9
Range(Tesla):
• 20 micro Tesla x 0.01 micro Tesla
• 200 micro Tesla x 0.1 micro Tesla
• 2,000 micro Tesla x 1 micro Tesla
• * 1 micro Tesla = 10 milli Gauss
Range(Gauss):
• 200 milli Gauss x 0.1 milli Gauss
• 2,000 milli Gauss x 1 milli Gauss
• 20,000 milli Gauss x 10 milli Gauss
Band width: 30 Hz to 300 Hz
Probe Structure: Separate probe with handle
Number of Axes: Single axis
Accuracy:
• ± (4 % + 3 d) - 20 micro Tesla/200 milli Gauss range
• ± (5 % + 3 d) - 200 micro Tesla/2,000 milli Gauss range.
• ± (10 % + 5 d) 2,000 micro Tesla/20,000 milli Gauss range.
• * Spec. accuracy tested under 50 Hz or 60 Hz
Over-input: Display shows " 1 "
Sampling Time: 0.4 second
Battery: DC 9V battery. 006P, MN1604 ( PP3 )
Power Current: Approx. DC 2 mA
Operating Temperature: 0ºC to 50ºC(32ºF to 122ºF)
Operating Humidity: 80% RH
Weight: 215 g/0.48 LB (including battery)
Dimension:
• Main instrument: 163 x 68 x 24 mm (6.4 x 2.7 x 0.9 inch)
• Probe: 175 x 45 x 22 mm (6.9 x 1.8 x 0.9 inch)
