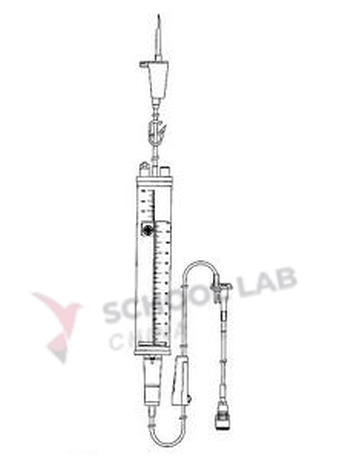

Infusion giving set,w/burette,ster,s.u.

Product Code : SCL-MAI-12520

General Description:
Infusion giving set, with burette, sterile, single use

Technical Specifications:
Sterile IV giving set with graduated chamber (burette) enabling precise volume and slow administration of infusion or injectable medicine.
Tube: plastic (PVC: polyvinyl chloride). Transparent (allowing the detection of air bubbles). Resistant to kinking.
Length is approximately 150cm (overall IV giving set length approximately 170cm). Internal / external diameter is approximately 3mm / 4mm.
Plastic Perforator: plastic (polyacetate).
Hollow device located at the proximal end of the infusion set allowing it to be connected to the infusion bottle or bag. Composed of a tapering tube mounted on a base ensuring a good seal between the set and the infusion bottle or bag.
Fitted with a protecting cap.

Weight/Volume/Dimensions:

estimated weight: 0.195kg
estimated volume: 1.06cdm

Instructions for use:
Sterile infusion giving set with graduated chamber enabling a slow intravenous administration of a precise volume of infusion or injectable drug over a given time. It is to be connected between the infusion and the intravenous catheter.
An infusion giving set should not be left in situ for more than 72 hours.
