Pulse oximeter, fingertip, rechargeable
.png)
Product Code : SCL-MAI-12400
GENERAL DESCRIPTION

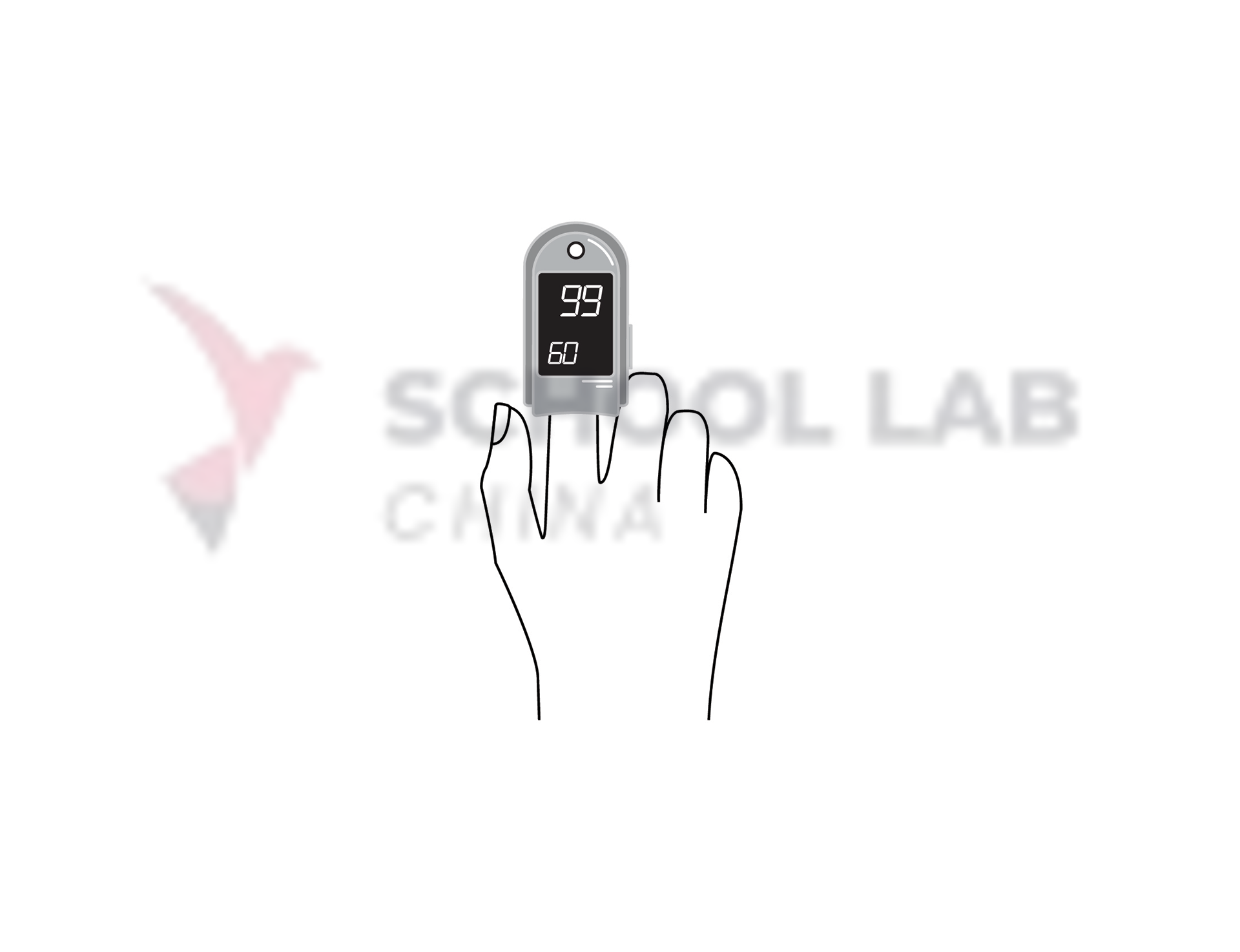

Finger clip mounted, rechargeable battery-powered, all-in-one pulse oximeter displaying patient oxygen saturation (SpO2) and pulse rate. Intended for spot-checking of adult and paediatric patients.
TECHNICAL SPECIFICATIONS
Measurement:
SpO2 and pulse rate monitor for adults and children.
Specified for finger diameters from 8mm to 25mm.
SpO2 detection includes the range: 70 - 100 %.? Also capable of measuring a wider range of saturation.
SpO2 resolution: 1 %.
SpO2 accuracy in the range 70 - 99%: ± 2 % under normal conditions.
???
Pulse Rate detection includes the range 18 - 250 bpm.
Pulse Rate resolution: 1 bpm.
Pulse Rate accuracy ± 3 bpm.
Display:
Multidirectional OLED display of SpO2, pulse rate (PR), perfusion index (PI), plethysmogram and battery indicator.
Can switch between 6 different display interfaces.
Features:
Design enables use in demanding environments, e.g. shock and vibration as per ISO 80601-2-61.
Enclosure protection IP22.
Suitable for cleaning and disinfection.
Electrical characteristics:
Operated by internal rechargeable battery.
Charger to have protection against over-voltage and over-current line conditions and be certified to IEC 60601-1.
Batteries allow approximately 16 hours of operation after full recharge or at least 2500 spot checks.
Automatic power-off.
ENVIRONMENTAL CONDITIONS
Operating conditions:?5 to 40°C, 30-80% RH
Storage conditions:?-20 to 60°C, 10-95% RH
?
SUPPLIED WITH
1 x built-in rechargeable battery.
1 x USB cable for charging battery.
1 x carry/storage case.
1 x set user and maintenance manuals in English/French/Spanish at minimum. Other languages can be requested. If digital manuals will be provided, then a quick reference guide in English/French/Spanish languages which clearly indicates the URL to access complete manuals will be supplied with each device.
1 x certificate of calibration and inspection.
1 x list of all equipment and procedures required for routine maintenance.
1 x document with contact details of manufacturer, supplier and local service agent.
?
WARRANTY
Includes 2-year standard warranty, dated from the completion of the terms of delivery.
?
ESTIMATED LIFE SPAN
5 years.
WEIGHT & VOLUME (Packaged)
Weight: 0.07kg
Volume: 0.3dm³
