Smart Metals Sample Pack (Smart Material)
 (1).jpg)
Product Code : SCL-CLE-12853

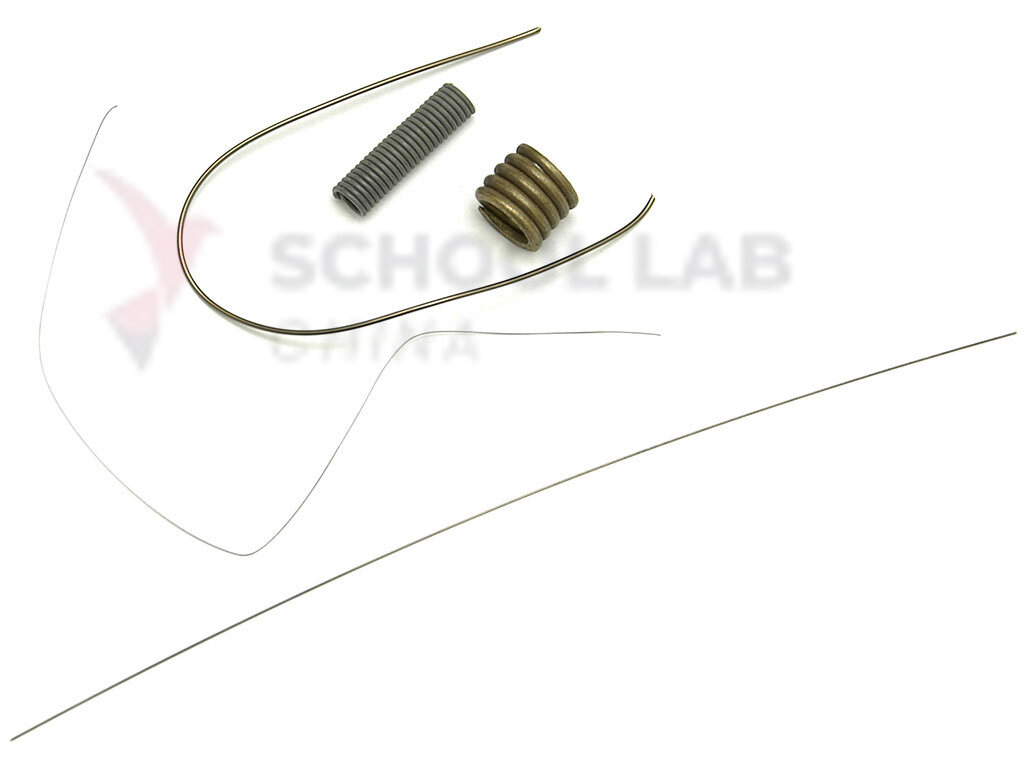

This Smart Metals sample pack contains labelled
samples of all the smart metals for evaluation, supplied in a rigid plastic
case.
- 1 x Smart Spring
- 1 x Two-Way Memory Spring
- 1 x Smart Wire 0.006″ diameter (125mm)
- 1 x Memory Metal (125mm)
Smart Spring:
At room temperature this spring is soft enough to
pull out to approximately 50mm by applying a small force.
When heated to 70°C by passing an electric current
through it (or by other means such as hot water or a heat gun, etc), the spring
contracts to its original length with a useful pulling force (equivalent to
lifting a 0.5kg weight).
- Spring weight: 1.1g
- Dimensions: 20mm (when closed), 5.5mm external
diameter. 4mm internal diameter
Two Way Memory Spring:
These remarkable springs, based on a brass alloy,
‘remember’ to open up when heated and close again when cool.
If immersed in hot water at or around 90°C they
will open in a split second and close as quickly if dropped in cold water. Such
springs have many industrial applications – e.g., in sprinkler and fire damping
systems where they replace expensive single-use only fusible links.
- Spring weight: 3g
- The spring is 10mm long, extending to 25mm in
hot water.
- 11.5mm external diameter
- 9mm internal diameter
Smart Wire:
Smart wire is a shape memory alloy (SMA) that
changes its length with a useful pulling force when a small current is passed
through it. The Smart Wire is activated by passing a small electric
current through it. It is also affected by temperature.
- 125mm length
- 0.15mm diameter wire
Reasons to Love
- A mixed pack of examples of Smart Metals and
Alloys
- Cross applications in Science and Design
Technology classes
Learning Outcomes
- Key Stage 3 Chemistry - Materials: Properties
of ceramics, polymers and composites (qualitative)
- Key Stage 4 Chemistry - Structure, Bonding and
the Properties of Matter: Smart Materials and Their
Properties. Bulk properties of materials related to bonding and
intermolecular forces
- Key Stage 4 Chemistry
- Atomic structure and the Periodic Table: Characteristic
properties of metals and non-metals.
Top Tips
- Can be used to introduce the concept of smart
metals and alloys.
