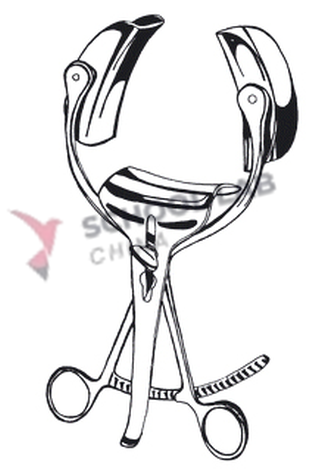

Retractor,abdo,Collin,3 blades

Product Code : SCL-MAI-12362
General Description:
Retractor, abdominal, Collin, 3 blades.

Intended use:
To retract skin, fatty tissue, muscles or viscera after the abdominal incision to expose the operative field.

Technical Specifications:
Static function instrument: abdominal self-retaining retractor.
See Martin Catalogue no. 24 Ref: 15 823 00.
With locking mechanism (self-holding).
3 blades, the two lateral blades being mobile and the center blade removable.
Solid lateral blades: approx. 38 x 60 mm.
Solid center blade: approx. 38 x 55 mm.
Maximum wound opening: approx. 100 mm.
Material: Martensitic steel (quenched, magnetic steel).
Martensitic steel composition: 0.15-0.50% carbon, 12-15% chromium, 0.45-0.90% molybdenum.
Reusable.

Environmental conditions:
Storage and transport conditions: 5°C to 40°C.
Humidity: 40% RH to 70% RH.

Safety process:
This item must be cleaned, disinfected after each use, and sterilised in a steam steriliser.

Packaging and labelling:
Primary packaging: Unit of use
One (1) retractor in a plastic bag.
